Guidance Cushion HSK-100 Highways Tunnel Entrance Impact Attenuator
Pile

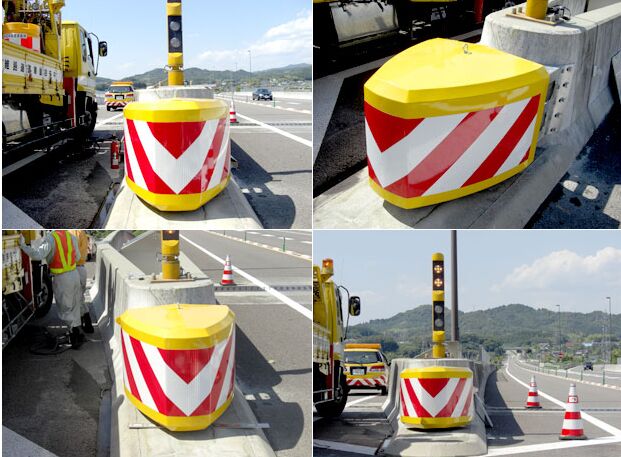

The guidance cushion is a facility to stop the vehicle safely by
absorbing the energy of the collision and to make the vehicle
change its direction of travel to avoid serious injury to the
occupants, its main function is to reduce the severity of the
accident, on the other hand, it also plays a warning and guidance
role through its surface colour and graphic symbols. They are
commonly used at highways, bifurcations, tunnel entrances etc.
Product specification
| Model | HSK-100 |
| Dimensions (W) | 1012mm |
| Dimensions of above-ground part (H) | 880mm |
| Dimensions of under-ground part (H) | 344mm |
| Dimensions of above-ground part (L) | 1577mm |
| Dimensions of under-ground part (L) | 2800mm |
| Foundation size | 1700*3500mm |
| Foundation depth | 650mm |
| Foundation weight | 380kg |
The specifications are for reference only, our company is
responsible for the whole process from design to manufacture, so we
can adjust the installation method according to the actual road
conditions.
Characteristics
This product is a shock absorber that utilizes the ability of metal
to absorb collision energy through deformation.
The guardrail bracket installation type / high fence installation
type is composed of impact absorption part and installation part,
and the buried type of foundation part is composed of impact
absorption part and buried part.
The device can replace the shock absorbing parts after the impact
deformation, so as to quickly respond to the recovery work after
the accident.
The absorption part is made of aluminum alloy, it is difficult to
cause secondary disasters, such as fire or scattering of impactors.
The size and shape can be customized according to your
requirements.
As shown in the figure, the buffer material is a honeycomb
structure composed of 8-shaped aluminum materials, and the damaged
parts can be replaced individually, which can reduce the adjustment
time of the accident location.
